A sanitary tee allows liquids to drain while venting the plumbing system. The downward sweep directs liquid toward the drain pipe.

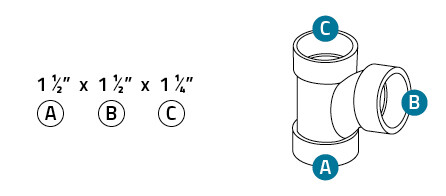

| Size | IPEX # | UPC | L | W | H | WT | |
|---|---|---|---|---|---|---|---|
| 1¼" | 027079 | 622454270794 | incm | 3.4 8.8 | 2.9 7.4 | 2.0 5.0 | 0.10 lbs0.05 kg |
| 1½" | 027081 | 622454270817 | incm | 3.9 9.9 | 3.2 8.1 | 2.2 5.6 | 0.20 lbs0.09 kg |
| 1½" x 1¼" x 1½" | 027055 | 622454270558 | incm | 4.1 10.3 | 3.6 9.1 | 2.2 5.6 | 0.22 lbs0.10 kg |
| 1½" x 1½" x 1¼" | 027062 | 622454270626 | incm | 3.7 9.5 | 2.4 6.0 | 2.8 7.0 | 0.24 lbs0.11 kg |
| 2" | 027082 | 622454270824 | incm | 4.9 12.5 | 4.1 10.3 | 2.7 6.9 | 0.32 lbs0.15 kg |
| 2" x 1½" x 1½" | 027058 | 622454270589 | incm | 4.5 11.4 | 4.2 10.6 | 2.7 6.9 | 0.26 lbs0.12 kg |
| 2" x 1½" x 2" | 027057 | 622454270572 | incm | 4.8 12.2 | 3.7 9.4 | 2.7 6.9 | 0.34 lbs0.15 kg |
| 2" x 2" x 1¼" | 027063 | 622454270633 | incm | 4.9 12.5 | 2.8 7.0 | 4.3 11.0 | 0.31 lbs0.14 kg |
| 2" x 2" x 1½" | 027056 | 622454270565 | incm | 4.6 11.6 | 4.0 10.2 | 2.7 6.9 | 0.27 lbs0.12 kg |
| 3" | 027083 | 622454270831 | incm | 7.8 19.7 | 6.5 16.6 | 3.9 10.0 | 0.90 lbs0.41 kg |
| 3" x 3" x 1½" | 027061 | 622454270619 | incm | 5.5 14.1 | 4.7 11.9 | 3.9 10.0 | 0.58 lbs0.26 kg |
| 3" x 3" x 2" | 027060 | 622454270602 | incm | 5.8 14.7 | 4.8 12.2 | 3.9 10.0 | 0.62 lbs0.28 kg |
| 4" | 027084 | 622454270848 | incm | 9.5 24.1 | 8.0 20.3 | 5.6 14.2 | 1.82 lbs0.83 kg |
| 4" x 4" x 2" | 027064 | 622454270640 | incm | 6.6 16.9 | 6.6 16.9 | 5.6 14.2 | 1.32 lbs0.60 kg |
| 4" x 4" x 3" | 027066 | 622454270664 | incm | 8.6 21.9 | 8.1 20.6 | 4.9 12.5 | 1.50 lbs0.68 kg |
