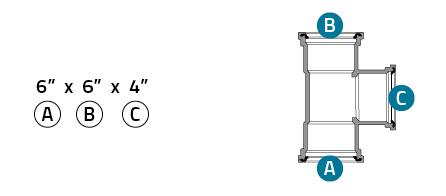

A Tee-Wye joins two runs of pipe at a 90-degree angle with the center hub angled downstream. Gasketed hubs on each end.
| Size | IPEX # | UPC | L | W | H | WT | |
|---|---|---|---|---|---|---|---|
| 4" | 043156 | 622454431560 | incm | 11.2 28.5 | 8.7 22.2 | 5.3 13.5 | 2.06 lbs0.93 kg |
| 6" x 6" x 4" | 043158 | 622454431584 | incm | 11.6 29.5 | 10.4 26.3 | 7.6 19.3 | 3.71 lbs1.68 kg |
| 6" | 043449 | 622454434493 | incm | 14.6 37.1 | 12.3 31.2 | 7.6 19.3 | 5.62 lbs2.55 kg |
