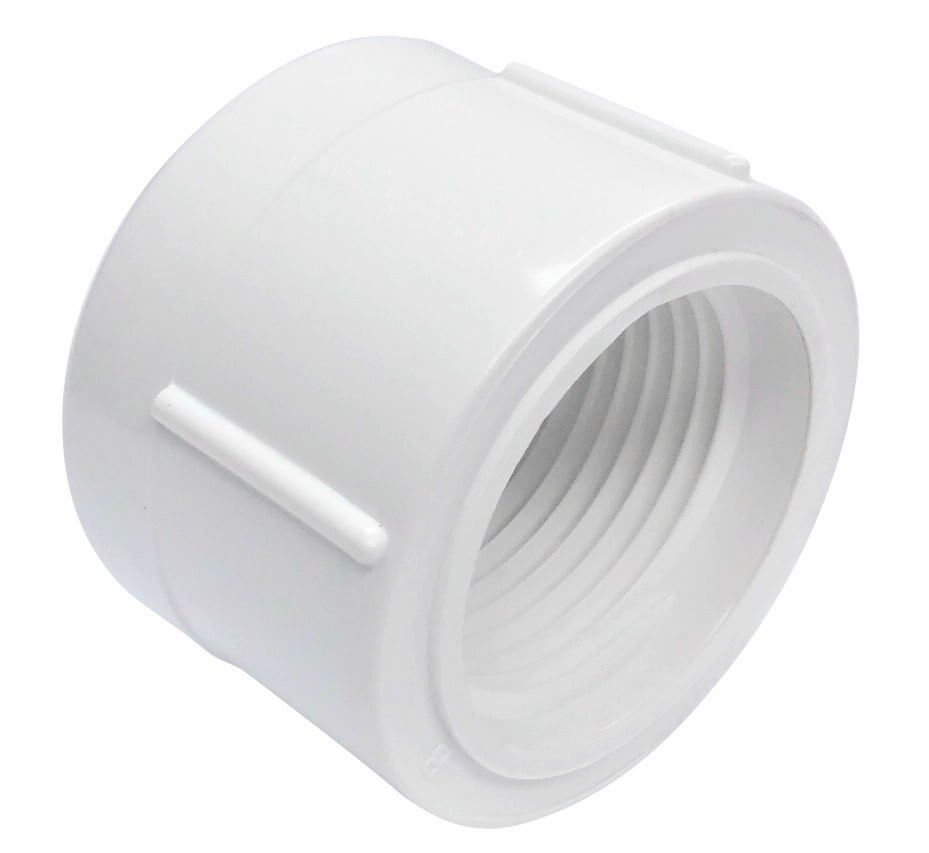

A female threaded (FPT) cap is used to seal an MPT fitting or to close off a pipe run ending in an MPT fittings.
| Size | IPEX # | UPC | L | W | H | WT | |
|---|---|---|---|---|---|---|---|
| 1/2" | 435423 | 622454354234 | incm | 1.2 3.0 | 1.3 3.3 | 1.3 3.3 | 0.05 lbs0.02 kg |
| 3/4" | 435424 | 622454354241 | incm | 1.3 3.2 | 1.5 3.8 | 1.5 3.8 | 0.07 lbs0.03 kg |
| 1" | 435425 | 622454354258 | incm | 1.6 4.0 | 1.8 4.6 | 1.8 4.6 | 0.11 lbs0.05 kg |
| 1¼" | 435426 | 622454354265 | incm | 1.5 3.8 | 2.2 5.7 | 2.2 5.7 | 0.15 lbs0.07 kg |
| 1½" | 435427 | 622454354272 | incm | 1.6 4.0 | 2.5 6.3 | 2.5 6.3 | 0.18 lbs0.08 kg |
| 2" | 435428 | 622454354289 | incm | 3.1 8.0 | 3.1 8.0 | 1.7 4.4 | 0.29 lbs0.13 kg |
